The coastline shall be measured from the mean high water mark. Wind speeds for Risk Category I II and III buildings are unchanged from the 6th Edition 2017 FBCB.
2010 Wind Maps
The 5th Edition 2014 version separates building types by Risk Categories into three wind speed maps.
2014 florida building code wind speed map. In the 6th Edition 2017 FBCB and ASCE 7-10 wind speeds for Risk Category III and IV buildings were the same and provided on a single map. Locate the main heading Florida Building Code Wind Map in the Layers section on the left side of the map. Risk categories are related to degree of hazard to human life depending on a structures use or function.
If the existing building was. To determine if your property is impacted by the wind-borne debris region. WindSpeedByZip is a tool for Architects Engineers and Builders to easily determine the 3-second gust basic windspeed Figure 6-1 of ASCE 7-05 and now Design Wind Speed per ASCE 7-10 maps for any location in the continental United StatesTo determine the basic windspeed fill in the address below.
Risk categories for wind speeds in High Velocity Hurricane Zones HVHZ Miami Dade County Risk Category I. The wind load provisions of ASCE 7-10 that is The American Society of Civil Engineers an. Buildings Structures 185 mph Broward County Risk Category I.
Wind Speed 170 mph Risk Category III IV. Buildings Structures 175 mph Risk Category III. The map below indicates the areas where high wind speeds dictate special design considerations.
In this example we are searching for a zip code for Champaign Illinois 61820. A relocated building shall comply with wind speed requirements of the new location using the appropriate wind speed map. The 2014 Florida Building Code FBC contains 3 different wind speed maps.
To search a zip code for design wind speeds you will need to first zoom into a city-level area of your country. Wind loads on every building or structure shall be determined in accordance with Chapters 26 to 30 of ASCE 7 or provisions of the alternate all-heights method in Section 16096. UNDER THE 5TH EDITION 2014 FLORIDA BUILDING CODE The 5th Edition 2014 Florida Building Code goes into effect June 30 2015.
In areas portions of hurricane-prone regions where the basic ultimate design wind speed Vult is 140 mph 636 ms or greater Definitions Mean High Water Line. Planning Development Building Code Wind Speed Maps. Determine the Risk Category for your project using the table below.
Wind Speed 180 mph Town of Jupiter Boundary 10 Miles Florida Building Code Wind Contours for the Town of Jupiter WindContoursBld2010mxd PDF JupiterGIS February 2018. Information System GIS technical assistance for preparation of local wind speed line maps. Previous versions of the Florida Building Code represented all building types on a single wind speed map.

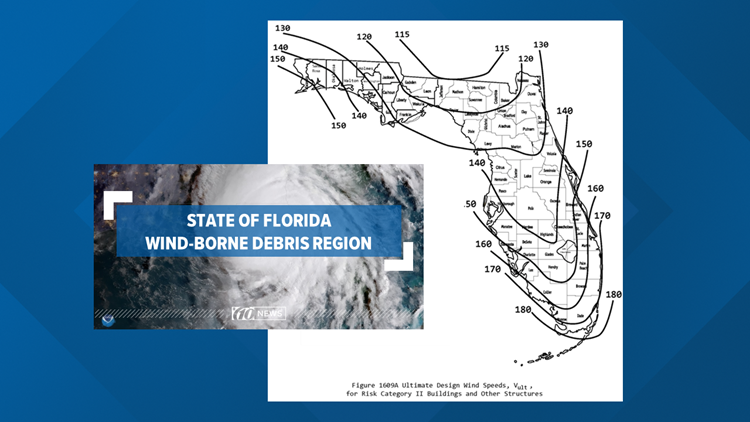

If the existing building was manufactured in compliance with the Standard Building Code prior to March 1 2002 the wind speed map of the Standard Building Code shall be applicable. FLORIDA BUILDING CODE BUILDING 6th EDITION 2017 491 FIGURE 160931 ULTIMATE DESIGN WIND SPEEDS V ULT FOR RISK CATEGORY II BUILDINGS AND OTHER STRUCTURES Copyright to or licensed by ICC ALL RIGHTS RESERVED. Determination of wind loads in Florida Building Code Building FBCB states that wind loads on every building or structure is required to be determined in accordance with Chapters 26 through 30 of ASCE 7.
Design wind speed Vult is 130 mph 58 ms or greater. Wind shall be assumed to come from any horizontal direction and wind pressures. Each map is based on different risk categories.
6223 Wind Zone 3150 mph 67 ms ultimate design wind speed V ult 170 mph 76 ms or 140 mph 63 ms ultimate design wind speed V ult 170 mph 76 ms and within one mile16 km of the coastline. Category III and IV represent different. Wind load provisions of the Florida Building Code are based on the American Society of Civil Engineers Standard ASCE and use wind speed measurement system called 3-second peak gust.
This is your basic wind speed. The course covers the Florida Building Code FBC Fifth Edition 14 that was implemented at midnight on June 30th 2015. Using the SkyCiv Wind Speed Map users can still enter their sites zip code to get wind speeds and pressures.
Buildings Structures 165 mph Risk Category II. This reference is to the 2010 Edition of ASCE 7 ASCE 7-10. Place a check mark in the box next to the heading by left clicking the box.
Buildings Structures 156 mph Risk Category II. Wind Speed Maps for Escambia County. Maps will be created for each building code jurisdiction dissected by the wind speed contours as depicted in the draft Florida Building Code 7th Edition 2020 Figure 160933 Risk Category IV Buildings and Structures.
You only need to fill in either the city and state or the zip code. Any permits that were applied for on June 30th 2015 would come under the Fifth Edition of the Florida Building Code. The changes to the wind loading criteria in the Florida.
You can zoom into any part of the map. Unlike the fastest mile wind highest sustained winds commonly used by weather reports the 3-second-peak-gust wind speed is 20 mph higher than the. Click on the Map for the selected Risk Category.
The current IRC code IRC 2012 states that in regions where wind design is required in accordance with Figure 30124B or where the basic wind speed as shown on Figure 30124A equals or exceeds 110 mph the design of the building must be in accordance with the methods in the AWC Wood Frame. The wind speed maps is the introduction of a new wind speed map for Risk Category IV buildings and structures.
